INTRODUCTION

Automatic forest fire forecast signboard was researched, produced and put into use by Forestry Information System Joint Stock Company since 2018, to overcome the disadvantages of manual signs used before such as time-consuming, laborious, and not ensuring timely forest fire forecasting level information.

FEATURES

Shows 5 levels of forest fire forecast;

Automatically collects meteorological factors to calculate forest fire forecast levels and control the rotating needle;

Users can manage and control the sign via the application on mobile devices;

Stores real time and calculation time at 13:00.

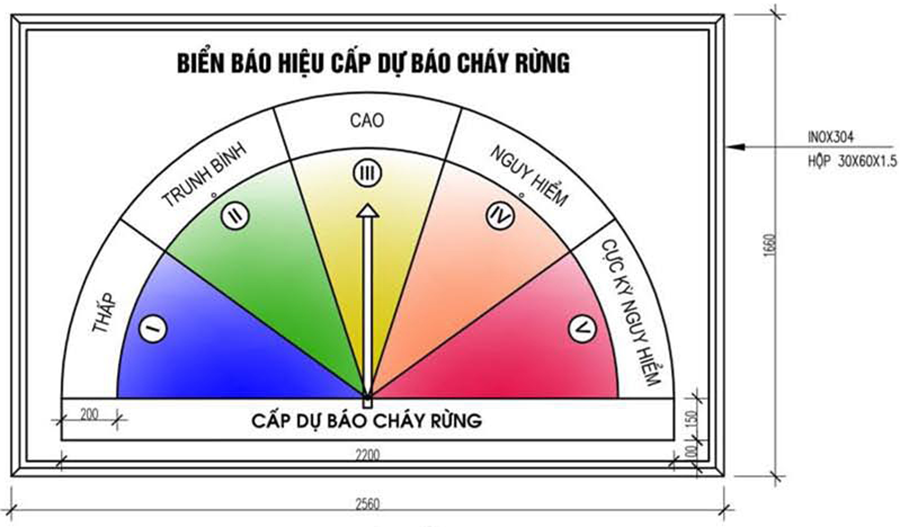

SIGN STRUCTURE

Inner frame made of stainless steel, size 2500x1600mm;

White plastic sign surface, transparent, heat-resistant, 6mm thick;

Water-resistant sign background, 6mm thick;

5 levels of forest fire forecast color, heat-resistant, reflective decal material;

Inox forest fire forecast level indicator;

Square column made of galvanized steel F100, height 3388mm;

Distance from column base to bottom edge of sign frame: 2000mm (can be adjusted according to actual installation location);

Distance from column base to top edge of sign frame: 3660mm (can be adjusted according to actual installation location);

CONTROL CABINET STRUCTURE

Size: 600mm wide, 800mm high, 300mm deep

Main circuit breaker

220V to 24V power converter

24V to 5V power converter circuit

CPU central processing board

Network connection module

RTC - PIN circuit

Motor controller

Motor controls rotating needle

Temperature - humidity sensor

Automatic fan according to cabinet temperature

220V input power.

MOBILE APPLICATION

Sign selection screen

Sign activity check screen

Forest fire forecast level screen

Sign control screen

Sign setting screen

Warranty: 12 months

Origin: Vietnam.

Manufacturer: Forestry Information System Joint Stock Company.
