INTRODUCE

The ground-based forest fire monitoring station utilizes dual-spectrum (thermal and optical) PTZ camera technology combined with artificial intelligence (AI) to enable continuous 24/7 forest fire monitoring, early and continuous detection of forest fires within a radius of up to 13.5 km. The station automatically detects smoke and flames, accurately identifies the coordinates of the fire point, and sends real-time alerts to forest rangers, forest owners, and management agencies. This enhances monitoring capabilities, shortens fire detection time, and supports the timely deployment of firefighting plans, contributing to improved forest fire prevention and control and minimizing damage caused by forest fires.

OFFICIAL PROJECT PARTNER CERTIFICATION

FEATURES:

- Automatically detects smoke and fire points, analyzes and processes data from cameras to provide timely warnings and notifications to end users about potential forest fires.
- Determines the geographical coordinates of fire points with high accuracy (VN2000 coordinate system).
- Monitoring range up to 13.5km.
- Continuous 24/7 monitoring and recording, stable operation day and night in various weather conditions.
- Allows for expansion and upgrades as needed.
- Automatic fire point alerts via mobile application.
- Allows integration and data sharing with local information systems and databases serving digital transformation.
- The forest fire monitoring station consists of two main components:
• Forest fire monitoring ground unit
• Installation infrastructure

1. SET OF GROUND MONITORING EQUIPMENT FOR FOREST FIRE MONITORING

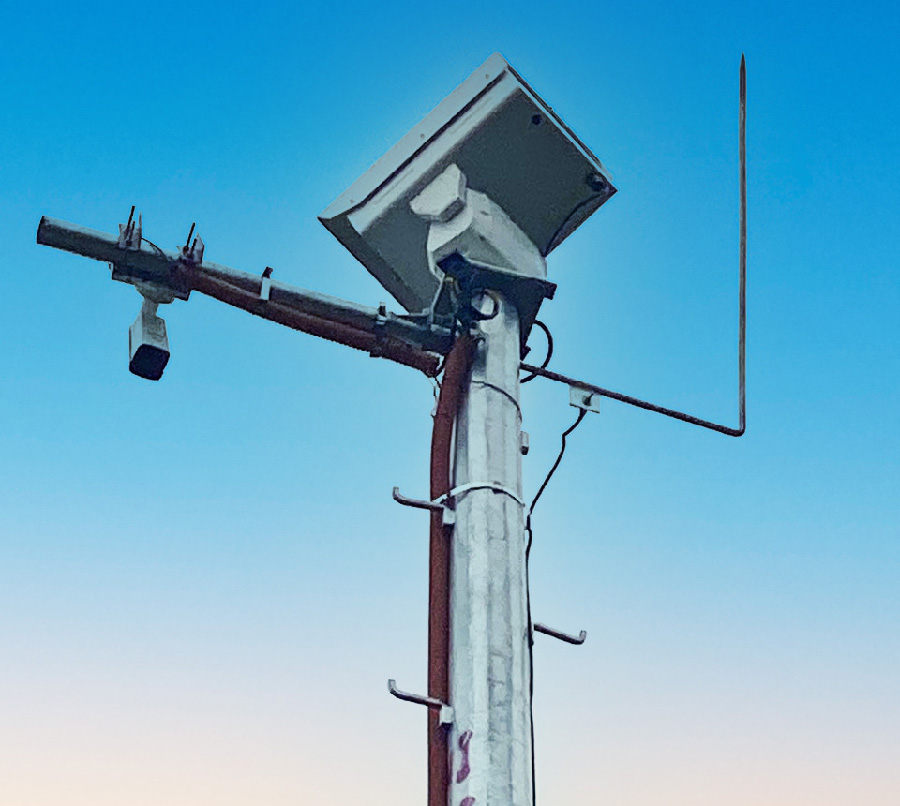

1.1 Dual-Spectrum PTZ Camera (Thermal & Optical) and Security Camera

• Thermal Module: Uncooled Vanadium Oxide FPA sensor
• Optical Module: 1/1.8" Progressive Scan CMOS sensor, 1920×1080 (2MP)
• PTZ: Pan 360° continuously; Tilt -45° to +45° (auto-flip)
• Intelligent Functions: Dynamic fire detection, up to 10 fire points
• Video & Audio: G.711u/a, G.722.1, MP2L2, PCM
• Interface: 7 alarm inputs, 2 relay outputs
• Dimensions: 649.2 × 438 × 668.3 mm
• Weight: 60kg
• Viewing Range: 13.5km

1.2 Integrated circuit solutions for camera communication, data collection, and data exploitation

The system manages the connection and communication with the cameras, allowing for the automatic collection and exploitation of data from the cameras (camera streams, image data, video, audio, etc.). This is the input data source for the integrated camera software to detect and determine the coordinates of the fire location. It includes:
• AI Processor: The central device that processes camera data, transmits image, audio, and video streams to the server; supports automatic software updates via internet connection;
• AC-DC Power Supply: Input voltage 220-240VDC, output 12VDC-3A, ensuring stable power supply for the entire system.
• Monitoring system: Tracks the internal temperature of the control cabinet and monitors the operating status of the AI ​​processor.
• Surge protection system: Protects the system from electrical surges and overvoltage.
• Control cabinet: Double-layered design, waterproof and insect-proof, suitable for outdoor installation.

1.3 Software solution integrating cameras to detect and pinpoint the location of a fire

The system's highlight is its positioning solution using a triangulation model from three cameras with overlapping viewing areas, combined with digital terrain data (DEM), allowing for precise determination of the fire's location in the field.

The system is designed with a modular architecture consisting of five main components, maximizing the capabilities of the ISAPI application programming interface (API) and advanced algorithms in the field of computer vision. The application of a three-camera triangulation model combined with integrated terrain data allows the system to achieve positioning accuracy of up to ±1 meter, surpassing current traditional solutions.

Key Features:
• Advanced Positioning Model: Utilizes a 3-camera overlapping configuration combined with triangulation algorithms and a positioning mechanism with integrated terrain awareness.
• High Accuracy: Achieves coordinate error of ±1m and fire detection accuracy up to 97.1%.
• Real-Time Processing: End-to-end processing time of only 95-137ms, meeting the requirements for continuous monitoring.
• Optimized API Integration: Fully leverages the capabilities of the ISAPI application programming interface.
• Flexible Scalability: Supports simultaneous operation of over 30 cameras with optimal performance.

1.4 Solutions for transmitting fire hotspot information to users

Includes:
- Software applications on servers and mobile devices (Android).
- A GIS database system built and integrated synchronously, serving the management, display, and analysis of spatial information.
- Hardware equipment system meeting the requirements for data collection, processing, and transmission for the entire system.

2. OBSERVATION TOWER AND INFRASTRUCTURE SYSTEM

Includes:
• Dedicated monitoring tower, 18 meters high
• Stable 220V power grid infrastructure
• High-speed 4G/5G SIM internet connectivity infrastructure.
• Lightning protection and equipment protection system.
